Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

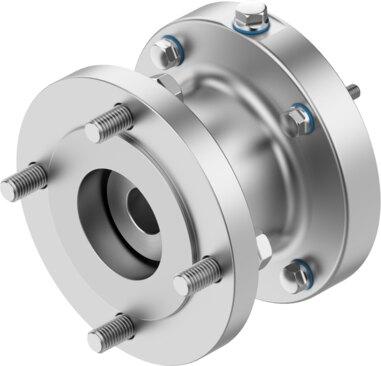

Reference imageConfirm configuration by manufacturer part number.
Festo
8230196
Axial kit EAMM-A-C80-19-120CA-S5
The Festo part number 8230196 is an industrial component with a nominal length of 80 mm, a 1:1 gear ratio, and a mass moment of inertia of 34.8 kgmm². This unit features a transferable torque of 21 Nm, a maximum rotational speed of 6500 rpm, a product weight of 3340 g, actuator interface code C80-19, and motor input interface code 120CA. Featuring an IP69K degree of protection and VDMA24364 Zone III LABS conformity, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 100% relative air humidity in any mounting position using RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230196
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230196.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 80 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 3340 g
- Interface code, actuator
- C80-19
- Interface code, motor in
- 120CA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230196. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
