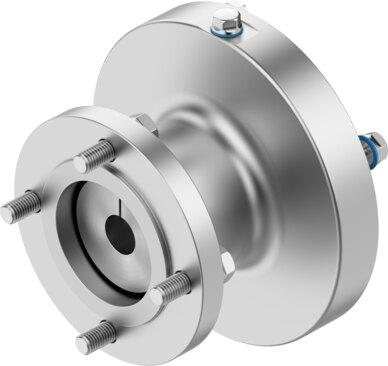

Reference imageConfirm configuration by manufacturer part number.
Festo
8230201
Axial kit EAMM-A-C80-19-158CA-S5
The Festo part number 8230201 is an industrial component featuring a 1:1 gear ratio, an 82 mm nominal length, and a transferable torque of 60 Nm. Operating at a maximum rotational speed of 5500 rpm with a mass moment of inertia of 128 kgmm², this 4510 g unit incorporates an actuator interface code C80-19 and a motor-in interface code 158CA. It provides IP69K ingress protection, VDMA24364 Zone III LABS conformity, and RoHS compliant materials while functioning across ambient temperatures from -10 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 82 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 4510 g
- Interface code, actuator
- C80-19
- Interface code, motor in
- 158CA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230201. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
