Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

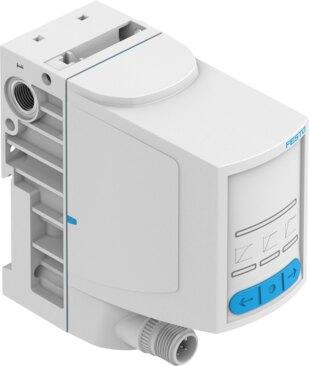

Reference imageConfirm configuration by manufacturer part number.
Festo
8230840
Proportional pressure control valve VPPI-1.8L-3-G18-0L6H-A4-S1
The Festo part number 8230840 is a 3-way proportional pressure control valve featuring a poppet valve structural design with spring return, direct type control, and soft sealing principles. It operates within a pressure range of 6 bar to 8 bar, featuring a 1.8 mm nominal width for both pressurization and exhaust, a non-reversible flow direction, and an LED display type. Electrical actuation is supported by setpoint inputs of 4 - 20 mA or PWM with a 0.3 kOhm input resistance, comprehensive short-circuit and reverse polarity protection, and a maximum cable length of 30 meters. This unit measures 42.2 mm in width, 95.3 mm in length, and 94.3 mm in height, incorporates a mechanical spring reset method, maintains a total leakage of 5 l/h, and features a normally closed VPPI safety position in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230840
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230840.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 1.8 mm
- Exhaust nominal width
- 1.8 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Total leakage
- 5 l/h
- Flow direction
- Non-reversible
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 4 - 20 mA | PWM
- Input resistance
- 0.3 kOhm
- Safety instructions
- Safety position VPPI, normally closed
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve
- Display type
- LED
- Operating pressure
- 6 bar...8 bar
- Pressure regulation range MPa
- 0 MPa...0.6 MPa
- Pressure regulation range
- 0 bar...6 bar
- Inlet pressure 1
- 0 bar...8 bar
- Inlet pressure 1 MPa
- 0 MPa...0.8 MPa
- Burst pressure
- 40 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 280 l/min
- Standard nominal ow rate 2-3
- 125 l/min
- DC operating voltage range
- 21.6 V...27.6 V
- Nominal current
- 0.15 A
- Max. current consumption
- 525 mA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
