Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

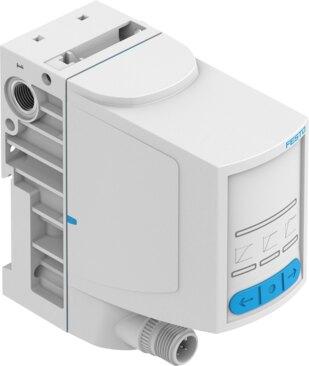

Reference imageConfirm configuration by manufacturer part number.
Festo
8230849
Proportional pressure control valve VPPI-1.8L-3-G18-1V1H-V1-S1D
The Festo 3-way proportional pressure control valve features a direct-operated poppet design with spring return, a 1.8 mm nominal width for both pressurization and exhaust, and a soft sealing principle. Equipped with a 1.77-inch color TFT display and a 0 - 10 V or digital setpoint input with a 100 kOhm input resistance, this unit includes short-circuit and reverse polarity protection for all electrical connections along with mechanical spring reset. Measuring 42.2 mm by 95.3 mm by 94.3 mm with any mounting position, it operates with a total leakage of 5 l/h, a non-reversible flow direction, and a normally closed safety position VPPI. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230849
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230849.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 1.8 mm
- Exhaust nominal width
- 1.8 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Total leakage
- 5 l/h
- Flow direction
- Non-reversible
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V | digital
- Input resistance
- 100 kOhm
- Safety instructions
- Safety position VPPI, normally closed
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve
- Display type
- Color TFT
- Display size
- 1.77"
- Display resolution
- 128x160 pixels
- Operating pressure
- 1 bar...2 bar
- Pressure regulation range MPa
- -0.1 MPa...0.1 MPa
- Pressure regulation range
- -1 bar...1 bar
- Inlet pressure 1
- 0 bar...4 bar
- Inlet pressure 1 MPa
- 0 MPa...0.4 MPa
- Burst pressure
- 40 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 80 l/min
- Standard nominal ow rate 2-3
- 40 l/min
- DC operating voltage range
- 21.6 V...27.6 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230849. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
