Festo
8232030

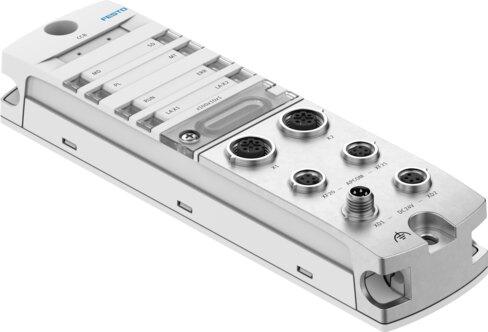

CC-Link IE Field Basic RUN CPX-AP-I-CCB-M12
Manufactured by Festo with part number 8232030, this industrial component measures 45 mm x 170 mm x 35 mm, weighs 186 g, and supports up to 80 modules with a maximum system communication cable length of 50 m. The unit features PA, PC, and nickel-plated die-cast zinc housing materials with a CRC 1 rating, VDMA24364-B2-L LABS conformity, RoHS compliance, and IP65 or IP67 protection when unused connections are sealed. Operating within an ambient temperature range of -20 °C to 60 °C and storage limits of -40 °C to 70 °C at 5 to 95% non-condensating relative air humidity, it mounts via H-rail with accessories or through-holes and carries CE, UKCA, KC, RCM, and cULus-Listed (OL) certifications under file UL E239998. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8232030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8232030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 45 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Max. number of modules
- 80
- Product weight
- 186 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- Unused connections sealed
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Max. cable length
- 50 m system communication
- Information on max. cable length
- Power supply according to nominal voltage
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC | Die-cast zinc, nickel-plated
- O-ring material
- FPM
- Diagnostics via LED
- CC-Link IE Field Basic RUN | Diagnostics per module | Power supply for electronics/sensors | Load power supply | System diagnostics | Maintenance required
