Festo
8233010

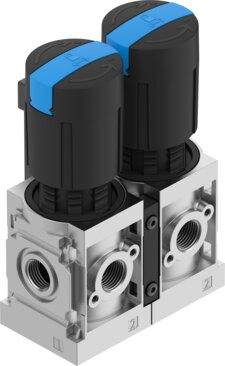

Service unit combination MSB4-1/4:O2:O2-WP-Z
The Festo part number 8233010 is an industrial component from the MS series in size 4, featuring a rotary knob actuator lock with detent that can be closed with accessories and a structural design without a pressure gauge. This pressure regulator provides constant output pressure with primary pressure compensation, secondary exhausting, and a return flow characteristic across a pressure regulation range of 0.03 MPa to 0.7 MPa (0.3 bar to 7 bar, 4.35 psi to 101.5 psi) within an operating pressure of 0.08 MPa to 1.4 MPa (0.8 bar to 14 bar, 11.6 psi to 203 psi). It operates with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases through G1/4 pneumatic connections 1 and 2, supporting oil lubrication and featuring a MODERATE CORROSION STRESS (CRC 2) rating alongside a product weight of 490 g for mounting with a bracket. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233010
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233010.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Structural design
- Pressure regulator without pressure gauge
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Operating pressure
- 0.08 MPa...1.4 MPa | 0.8 bar...14 bar | 11.6 psi...203 psi
- Pressure regulation range MPa
- 0.03 MPa...0.7 MPa
- Pressure regulation range
- 0.3 bar...7 bar
- Pressure regulation range psi
- 4.35 psi...101.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 490 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8233010. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
