Festo
8233012

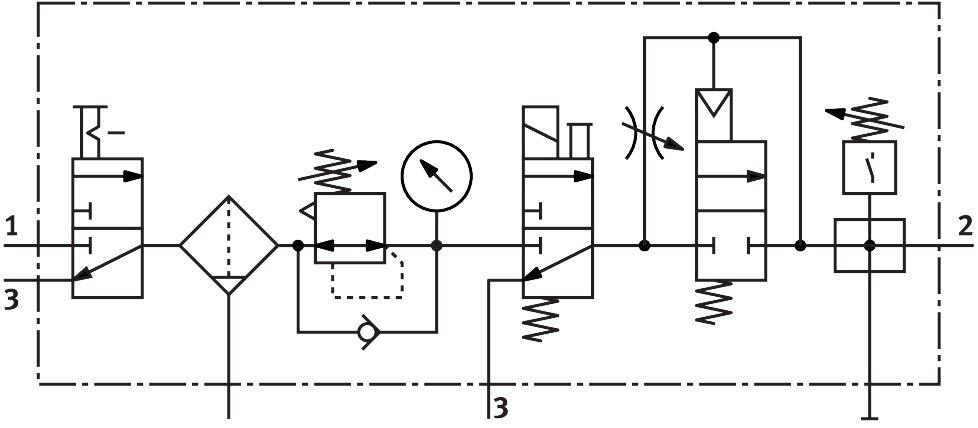

Service unit combination MSB4-1/8:C3:J1:D1:A1:F3-WP
The Festo part number 8233012 is an industrial component of series MS, size 4, featuring a structural design comprising a branching module, soft-start valve, on/off valve, and an on/off valve filter regulator. It operates within a pressure range of 0.45 MPa to 1.4 MPa (4.5 bar to 14 bar / 65.25 psi to 203 psi), provides a pressure regulation range of 4 bar to 12 bar, and delivers a maximum standard flow rate of 450 l/min using compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233012
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233012.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Manual override
- Detenting | Non-detenting
- Condensate drain
- Manual, rotating
- Structural design
- Branching module | Soft-start valve | On/off valve | On/off valve lter regulator
- Max. condensate volume
- 19 ml
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.45 MPa...1.4 MPa | 4.5 bar...14 bar | 65.25 psi...203 psi
- Pressure regulation range MPa
- 0.4 MPa...1.2 MPa
- Pressure regulation range
- 4 bar...12 bar
- Pressure regulation range psi
- 58 psi...174 psi
- Max. standard ow rate
- 450 l/min
- Coil characteristics
- 24 V DC: 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
