Festo
8233029

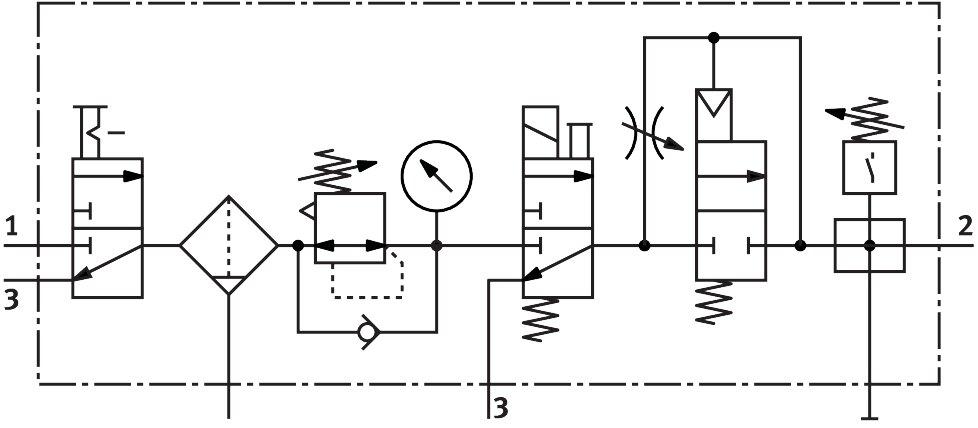

Service unit combination MSB6-1/4:C3:J1:D1:A1:F3-WP
The Festo part number 8233029 is an industrial component of the MS series, size 6, featuring a branching module structural design with a vertical ±5° mounting position. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases within an operating pressure range of 0.45 MPa to 1.8 MPa (4.5 bar to 18 bar, 65.25 psi to 261 psi) and provides a pressure regulation range of 0.4 MPa to 1.2 MPa (4 bar to 12 bar, 58 psi to 174 psi) with a max standard flow rate of 1500 l/min. This unit includes a 40 µm filtration grade, a 38 ml max condensate volume, a manual rotating condensate drain, a plastic bowl guard, a pressure gauge, and a rotary knob actuator lock with detent that can be closed with accessories alongside detenting and non-detenting manual override. The controller function delivers constant output pressure with primary pressure compensation, secondary exhausting, and a return flow characteristic, powered by 24 V DC 1.5 W coil characteristics while permitting operation with oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Manual override
- Detenting | Non-detenting
- Condensate drain
- Manual, rotating
- Structural design
- Branching module
- Max. condensate volume
- 38 ml
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.45 MPa...1.8 MPa | 4.5 bar...18 bar | 65.25 psi...261 psi
- Pressure regulation range MPa
- 0.4 MPa...1.2 MPa
- Pressure regulation range
- 4 bar...12 bar
- Pressure regulation range psi
- 58 psi...174 psi
- Max. standard ow rate
- 1500 l/min
- Coil characteristics
- 24 V DC: 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8233029. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
