Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

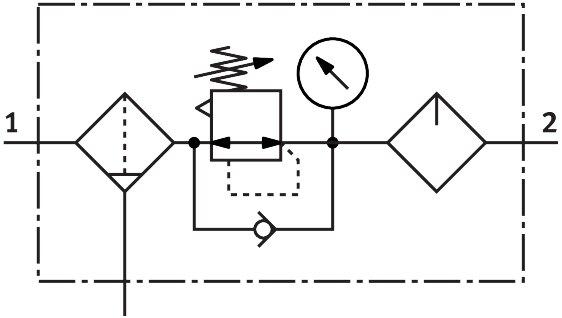

Reference imageConfirm configuration by manufacturer part number.
Festo
8233049
Service unit combination MSB6-AGF:J120:M1-WP
The Festo part number 8233049 is an MS series size 6 filter regulator lubricator featuring a 40 µm grade of filtration, a 38 ml max condensate volume, and a 75 cm³ max oil capacity with a manual rotating condensate drain. It provides a constant output pressure with primary pressure compensation, secondary exhausting, and return flow characteristics across an operating pressure range of 1.5 bar to 20 bar and a pressure regulation range of 0.1 bar to 7 bar. This unit includes a plastic bowl guard, a pressure gauge, and a rotary knob with detent actuator lock that can be closed with accessories, operating at a maximum standard flow rate of 4800 l/min in a vertical ±5° mounting position using compressed air as per ISO 8573-1:2010 [-:4:-] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233049
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233049.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator lubricator
- Max. condensate volume
- 38 ml
- Grade of ltration
- 40 µm
- Max. oil capacity
- 75 cm³
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.15 MPa...2 MPa | 1.5 bar...20 bar
- Pressure regulation range
- 0.1 bar...7 bar
- Max. standard ow rate
- 4800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1930 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- G1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8233049. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
