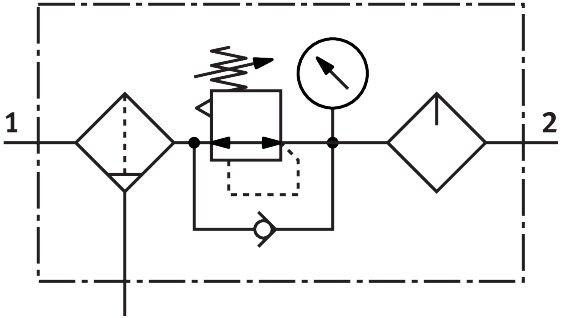

Reference imageConfirm configuration by manufacturer part number.
Festo
8233051
Service unit combination MSB6-AGF:J2:M1-WP
The Festo MS series size 6 filter regulator lubricator features a structural design integrating a fully automatic condensate drain with a maximum condensate volume of 38 ml, a 40 µm filtration grade, and a 75 cm³ max oil capacity. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar), provides a pressure regulation range of 0.5 bar to 12 bar, and delivers a maximum standard flow rate of 3700 l/min using compressed air conforming to ISO 8573-1:2010 [7:4:-] or inert gases. Equipped with a rotary knob with detent actuator lock, plastic bowl guard, and integrated pressure gauge, it maintains constant output pressure with primary pressure compensation, secondary exhausting, and return flow characteristics in a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233051
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233051.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator lubricator
- Max. condensate volume
- 38 ml
- Grade of ltration
- 40 µm
- Max. oil capacity
- 75 cm³
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. standard ow rate
- 3700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1930 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- G1
