Name: Festo 8233480 Manifold sub-base for vacuum VABX-A-S-VE-BH-VB010L
Brand: Festo

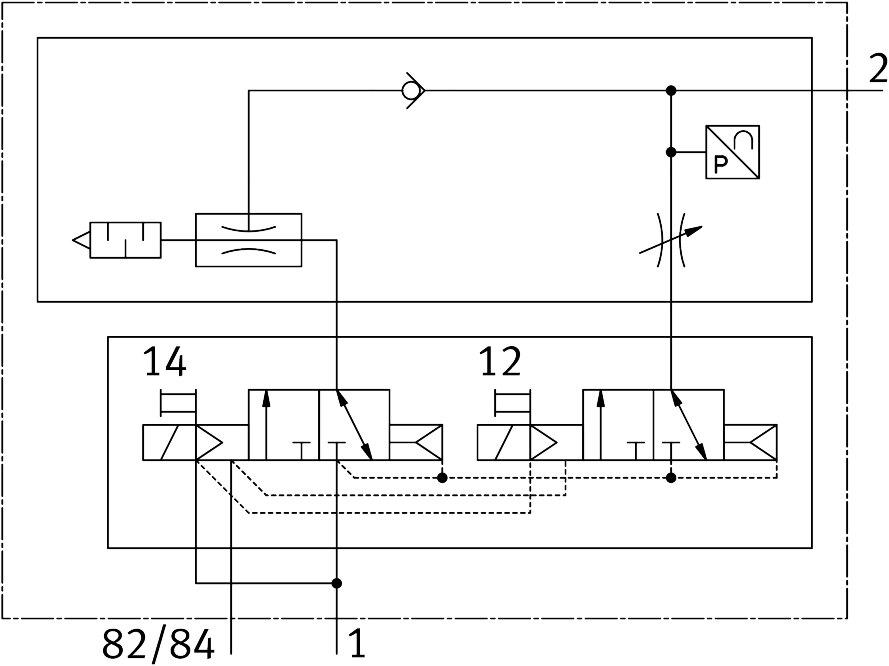

Manifold sub-base for vacuum VABX-A-S-VE-BH-VB010L

The Festo part number 8233480 is an electrical industrial component featuring a 10 mm valve size, a 12.55 mm width dimension, and a 150.8 mm length with an open muffler construction type and soft sealing principle. Designed with a 0.95 mm nominal width Laval nozzle, it operates via piloted control with an internal pilot air supply port and a 2x3/2 closed, monostable valve function offering high suction flow ejector characteristics. The unit integrates a pressure sensor, pressure transmitter, flow control valve, check valve, electric on-off valve, electric air-saving function, electric ejector pulse, and electric ejector pulse valve alongside an electrical interlinking module and internal communication diagnostics for load switch-off as well as electronics and sensors overvoltage and undervoltage. Built with reverse polarity protection and slotted screw adjusting elements, this component supports any mounting position and meets EN 60068-2-6 and FN 942017-4 vibration resistance alongside EN 60068-2-27 and FN 942017-5 shock resistance for transport applications. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8233480
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8233480.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 12.5 mm | 12.55 mm
Length: 150.8 mm
Nominal width of Laval nozzle: 0.95 mm
Width dimension: 12.55 mm
Valve size: 10 mm
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Muﬄer construction type: Open
Actuation type: Electrical
Reverse polarity protection: Yes
Sealing principle: Soft
Mounting position: Any
Ejector characteristics: High suction ow
Adjusting element: Slotted screw
Diagnose per internal communication: Load switch-oﬀ | Electronics/sensors overvoltage | Electronics/sensors undervoltage
Max. no. of valve positions: 1
Integrated function: Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-oﬀ valve | Electric air-saving function | Check valve | Muﬄer open | With electrical interlinking module
Type of control: Piloted
Pilot air supply port: Internal
Valve function: 2x3/2 closed, monostable
Max. no. of solenoid coils: 2
Display type: LED
