Festo
8233481

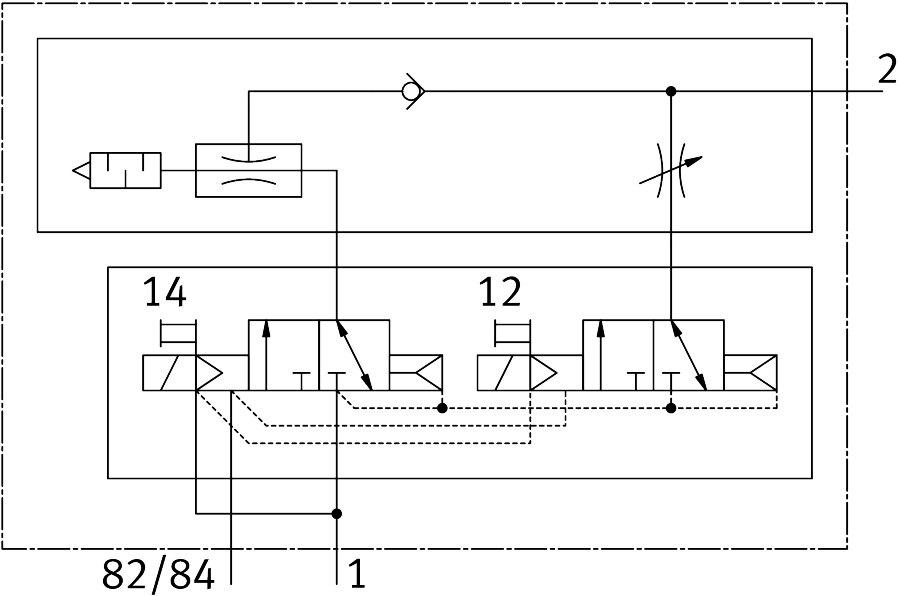

Manifold sub-base for vacuum VABX-A-P-VE-BH-VB010L
The Festo 8233481 is an industrial component featuring a 10 mm valve size, a 12.55 mm width dimension, and a 150.8 mm length with a 0.95 mm nominal Laval nozzle width. This electrically actuated, piloted unit includes integrated functions such as an electric ejector pulse, ejector pulse valve, flow control valve, electric on-off valve, check valve, open muffler, and an electrical interlinking module within a monostable 2x3/2 closed valve function. Designed with soft sealing, internal pilot air supply, and reverse polarity protection, it offers high suction flow ejector characteristics controlled via a slotted screw adjusting element in any mounting position. It meets vibration resistance requirements for transport applications under severity level 2 as per FN 942017-4 and EN 60068-2-6, alongside shock resistance under severity level 2 as per FN 942017-5 and EN 60068-2-27. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High suction ow
- Adjusting element
- Slotted screw
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Display type
- LED
- Signal status display
- Yellow LED, valve actuation
- Operating pressure for max. suction rate
- 0.6 MPa | 6 bar | 87 psi
