Festo
8233482

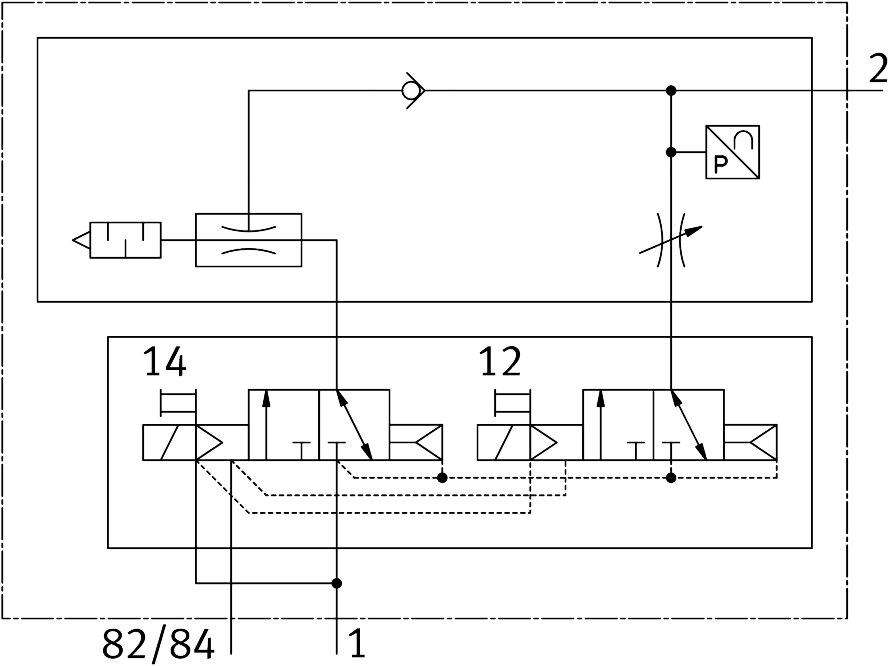

Manifold sub-base for vacuum VABX-A-S-VE-BH-VB07H
The Festo part number 8233482 is an industrial component featuring a 10 mm valve size, a 12.55 mm width dimension, a 150.8 mm length, and a 0.7 mm nominal width Laval nozzle with high vacuum ejector characteristics. This electrically actuated, piloted device incorporates a soft sealing principle, an open muffler construction type, reverse polarity protection, and a 2x3/2 closed, monostable valve function supporting any mounting position. Integrated functions comprise an electric ejector pulse and ejector pulse valve, a flow control valve, a pressure sensor and transmitter, an electric on-off valve, an electric air-saving function, a check valve, an open muffler, and an electrical interlinking module with diagnostics for load switch-off and electronics or sensors overvoltage and undervoltage. It meets vibration resistance for transport applications at severity level 2 per FN 942017-4 and EN 60068-2-6, alongside shock resistance at severity level 2 per FN 942017-5 and EN 60068-2-27. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233482
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233482.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Adjusting element
- Slotted screw
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Electric air-saving function | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Display type
- LED
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8233482. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
