Festo
8233483

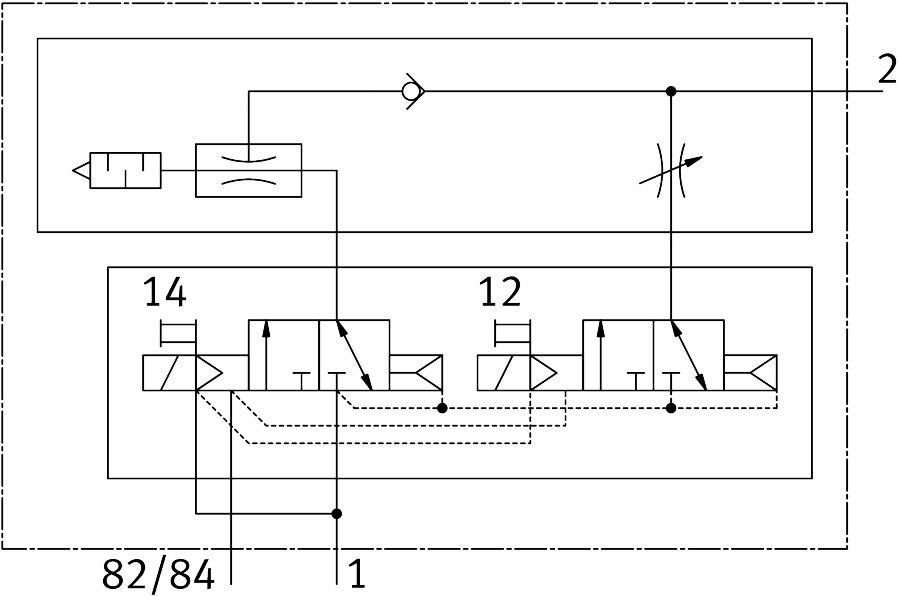

Manifold sub-base for vacuum VABX-A-P-VE-BH-VB07H
The Festo 8233483 is an electrical industrial component featuring a 10 mm valve size, a 12.5 mm to 12.55 mm width, a 150.8 mm length, and a 0.7 mm nominal width Laval nozzle with a high vacuum ejector characteristic. This piloted unit includes integrated functions such as an electric ejector pulse and ejector pulse valve, flow control valve, electric on-off valve, check valve, open muffler, and an electrical interlinking module operating with a 2x3/2 closed, monostable valve function for up to two solenoid coils. Certified for transport vibration resistance under FN 942017-4 and EN 60068-2-6 and shock resistance under FN 942017-5 and EN 60068-2-27, it incorporates reverse polarity protection, a soft sealing principle, an open muffler construction type, an internal pilot air supply port, a slotted screw adjusting element, and supports any mounting position. Request a quote for Festo part number 8233483 by submitting your required quantity and application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233483
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233483.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Adjusting element
- Slotted screw
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Display type
- LED
- Signal status display
- Yellow LED, valve actuation
- Operating pressure for max. suction rate
- 0.3 MPa | 3 bar | 43.5 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8233483. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
