Festo
8233484

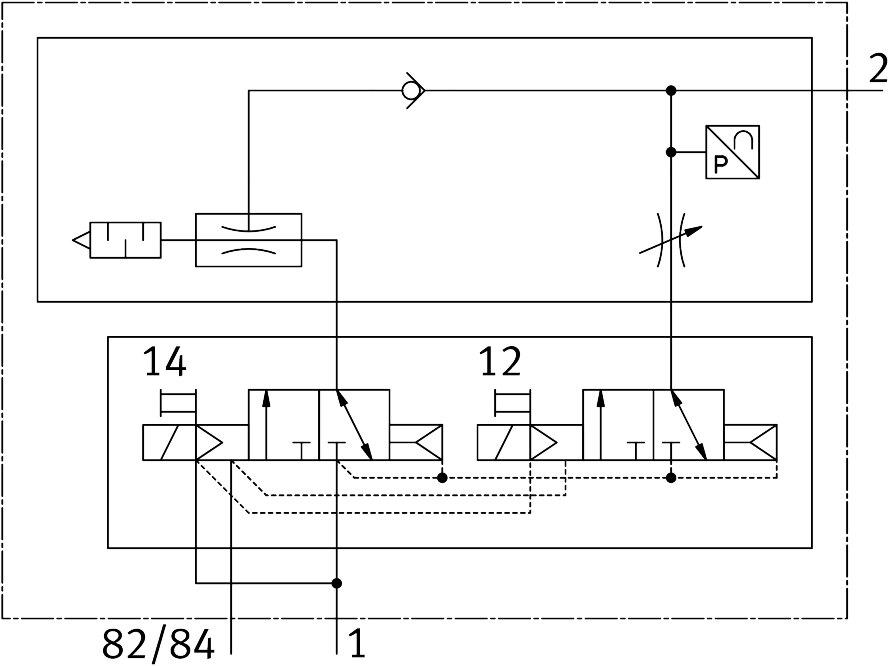

Manifold sub-base for vacuum VABX-A-S-VE-BH-VB07L
The Festo part number 8233484 is an electrical industrial component featuring a 10 mm valve size, a 12.55 mm width dimension, and a 150.8 mm length with a 0.7 mm nominal width Laval nozzle. This unit utilizes a piloted control type with internal pilot air supply, a soft sealing principle, and a 2x3/2 closed monostable valve function supporting high suction flow ejector characteristics. Integrated functions include an electric ejector pulse, an electric ejector pulse valve, a flow control valve, a pressure sensor, a pressure transmitter, an electric on-off valve, an electric air-saving function, a check valve, an open muffler, and an electrical interlinking module with reverse polarity protection. It offers diagnostic capabilities for load switch-off, electronics/sensors overvoltage, and electronics/sensors undervoltage, while meeting vibration resistance severity level 2 as per FN 942017-4 and EN 60068-2-6 alongside shock resistance severity level 2 as per FN 942017-5 and EN 60068-2-27 for any mounting position. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233484
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233484.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High suction ow
- Adjusting element
- Slotted screw
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Electric air-saving function | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Display type
- LED
