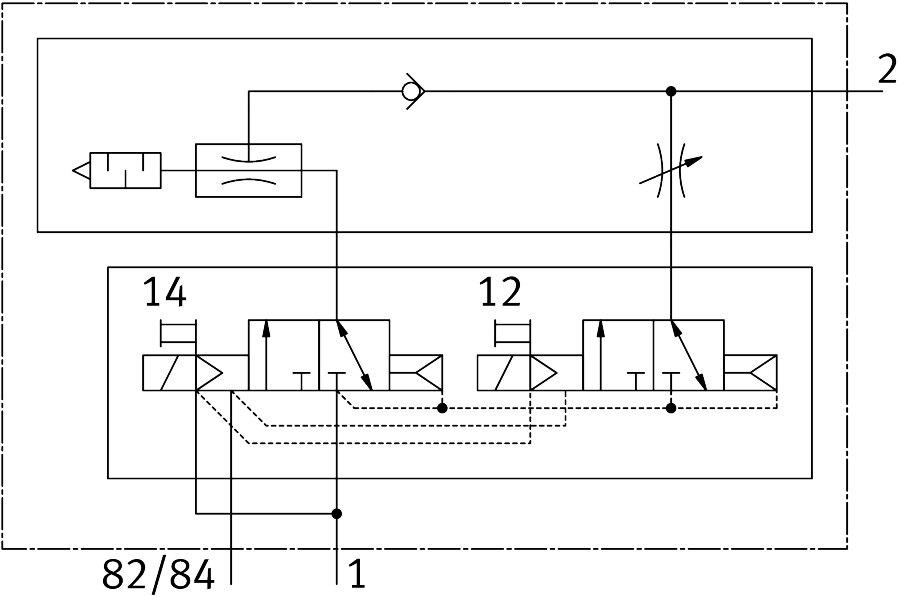

Reference imageConfirm configuration by manufacturer part number.
Festo
8233485
Manifold sub-base for vacuum VABX-A-P-VE-BH-VB07L
The Festo 8233485 is an electrical industrial component measuring 12.5 mm in width and 150.8 mm in length, featuring a 0.7 mm nominal width Laval nozzle and a 10 mm valve size. This piloted unit incorporates an open muffler construction, soft sealing principle, slotted screw adjusting element, and internal pilot air supply port, alongside integrated functions including an electric ejector pulse valve, flow control valve, electric on-off valve, check valve, and electrical interlinking module. Built with reverse polarity protection and two solenoid coils, it supports any mounting position and delivers high suction flow through its 2x3/2 closed, monostable valve function while meeting severity level 2 standards for both vibration and shock resistance under specified FN and EN norms. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8233485
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8233485.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High suction ow
- Adjusting element
- Slotted screw
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Display type
- LED
- Signal status display
- Yellow LED, valve actuation
- Operating pressure for max. suction rate
- 0.6 MPa | 6 bar | 87 psi
