Festo
8234789

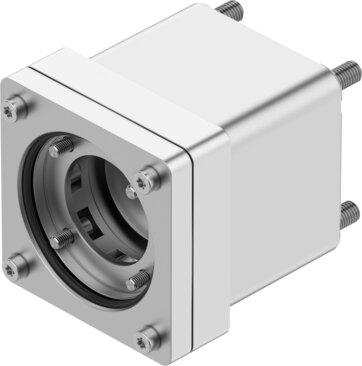

Axial kit EAMM-A-D60-60G-S1-G3
The Festo 8234789 is an industrial component featuring a nominal length of 76.5 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1210 g with RoHS compliant materials. It supports any mounting position, a maximum rotational speed of 6000 rpm, a transferable torque of 21 Nm, and holds an IP65 degree of protection alongside VDMA24364-B2-L LABS conformity. Operating parameters include an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, relative air humidity from 0 to 95%, an actuator interface code of D60, and a motor input interface code of 60G. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8234789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8234789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 76.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1210 g
- Interface code, actuator
- D60
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8234789. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
