Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8234792

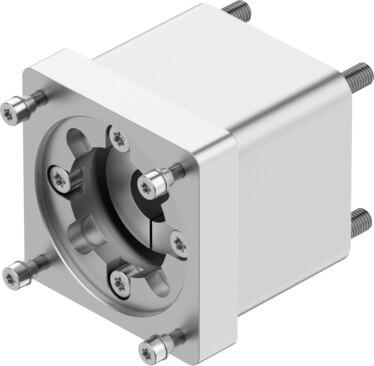

Axial kit EAMM-A-D60-80P-G2
The Festo part number 8234792 is an industrial component with a nominal length of 75 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1070 g. It supports an actuator interface code of D60, a motor-in interface code of 80P, 80PA, or 80RA, and a transferable torque of 21 Nm up to a maximum rotational speed of 6000 rpm. Featuring IP40 protection, VDMA24364-B2-L LABS conformity, and RoHS compliance, this unit operates in ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95% in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8234792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8234792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1070 g
- Interface code, actuator
- D60
- Interface code, motor in
- 80P | 80PA | 80RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8234792. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
