Festo
8234795

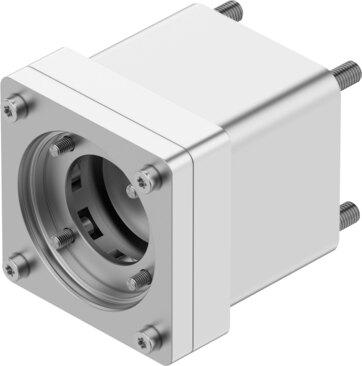

Axial kit EAMM-A-S60-60G
The Festo 8234795 industrial component features a nominal length of 75 mm, a mass moment of inertia of 34.8 kgmm², and a transferable torque of 21 Nm with a maximum rotational speed of 6000 rpm. This RoHS compliant part weighs 1100 g, operates with an IP40 degree of protection, and accommodates any mounting position alongside actuator interface code S60 and motor-in interface code 60G. It functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and VDMA24364-B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8234795
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8234795.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1100 g
- Interface code, actuator
- S60
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8234795. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
