Festo
8234801

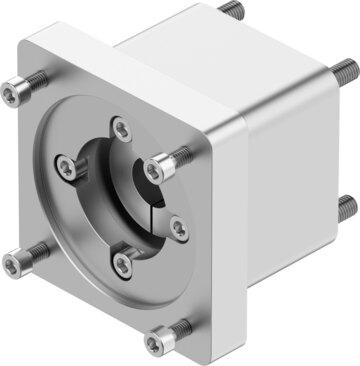

Axial kit EAMM-A-S60-84AA
The Festo 8234801 is an industrial component featuring an actuator interface code of S60 and a motor input interface code of 84AA with a nominal length of 75 mm and a product weight of 1090 g. It supports any mounting position, a maximum rotational speed of 6000 rpm, a transferable torque of 21 Nm, and a mass moment of inertia of 34.8 kgmm², meeting VDMA24364-B2-L LABS conformity and RoHS material directives. Operating parameters include an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, 0 to 95% relative air humidity, and an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8234801
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8234801.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1090 g
- Interface code, actuator
- S60
- Interface code, motor in
- 84AA
- Note on materials
- RoHS compliant
