Festo
8234804

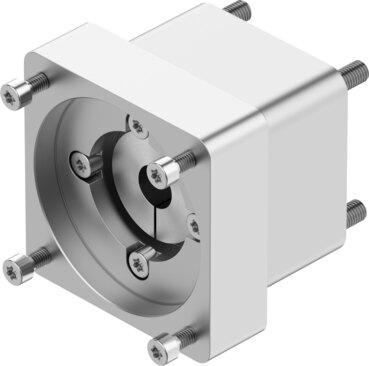

Axial kit EAMM-A-S60-90R
This Festo industrial component, part number 8234804, features a nominal length of 75 mm, an actuator interface code of S60, and a motor input interface code of 90R or 92RA. It operates with a maximum rotational speed of 6000 rpm, a transferable torque of 21 Nm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1010 g with RoHS compliant materials. The unit is built for any mounting position, offering an IP40 degree of protection, VDMA24364-B2-L LABS conformity, a storage temperature range of -25 °C to 60 °C, an ambient temperature range of -10 °C to 60 °C, and 0 to 95% relative air humidity tolerance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8234804
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8234804.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1010 g
- Interface code, actuator
- S60
- Interface code, motor in
- 90R | 92RA
- Note on materials
- RoHS compliant
