Name: Festo 8235213 Solenoid coil VACF-B-45-B1-1
Brand: Festo

Solenoid coil VACF-B-45-B1-1

The Festo part number 8235213 is an electrical industrial component weighing 47.5 g featuring a polyamide and steel housing with a CRC rating of 2 and IP65 degree of protection. Operating on a 100% duty cycle at 24 V DC with a 4.5 W coil and class H insulation, it conforms to IEC 61010-1 and accommodates any mounting position using a knurled nut. Electrical connection 1 utilizes a 3-pin plug adhering to EN 175301-803 circuit diagram type B with a central screw M3, operating within a medium and ambient temperature range of -5 °C to 40 °C and permissible voltage fluctuations of +/- 10%. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8235213
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8235213.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Conforms to standard: IEC 61010-1
Duty cycle: 100%
Insulation class: H
Coil characteristics: 24 V DC: 4.5 W
Permissible voltage uctuations: +/- 10%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -5 °C...40 °C
Degree of protection: IP65
Ambient temperature: -5 °C...40 °C
Product weight: 47.5 g
Electrical connection 1, connection type: Plug

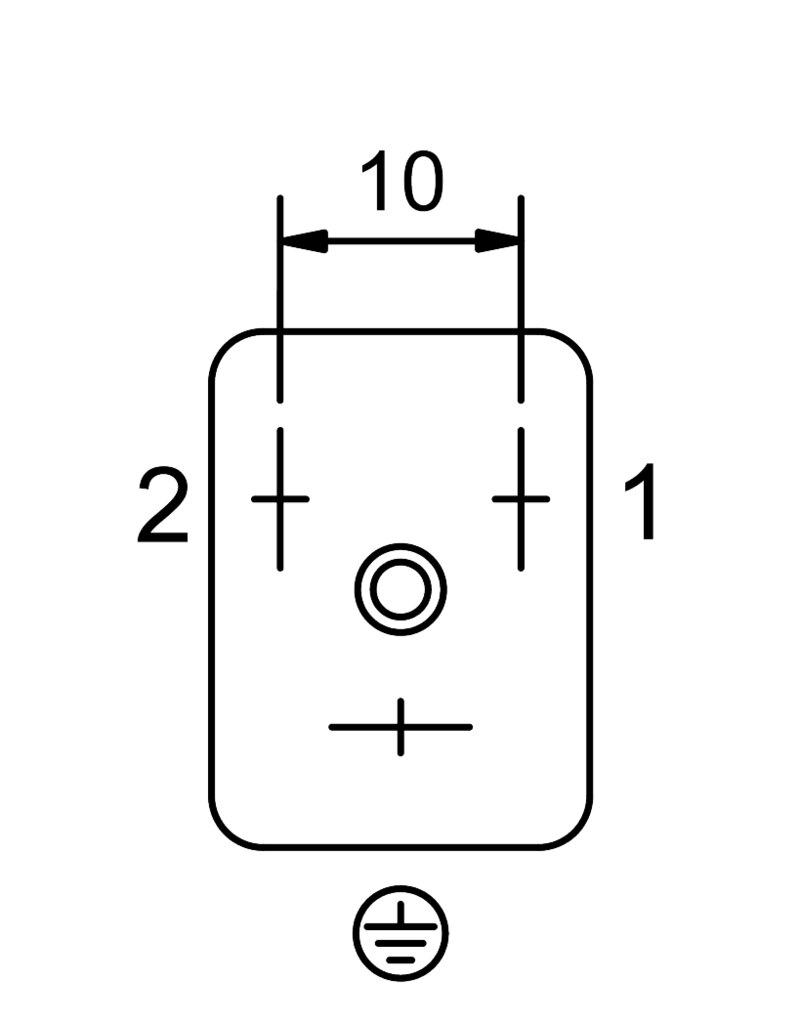

Electrical connection 1, connection technology: Circuit diagram type B as per EN 175301-803
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Central screw M3
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Housing material: PA | Steel
Solenoid coil material: Copper | Steel | Thermoplast
Material of winding: Copper

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8235213. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
