Festo
8240790

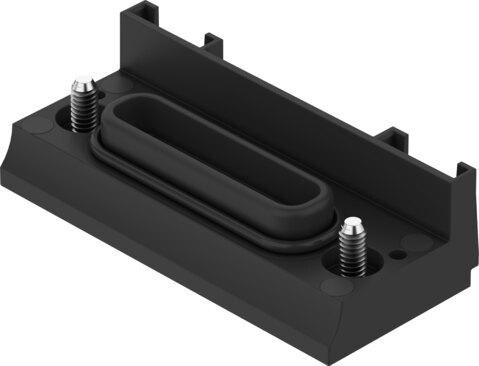

Sealing cap VABB-XA-8E
The Festo 8240790 industrial component is designed for modular and expandable valve manifold designs and is compatible with the VTUX-A-S valve manifold. Measuring 41.8 mm in width and 19 mm in length, this 20 g screwed-mounting part features a PA-reinforced cover, NBR seals, high-grade steel screws, a label holder for valve position ID, and an IP65 degree of protection in the mounted state that conforms to VDMA24364-B1/B2-L LABS standards while maintaining RoHS compliance. It operates with a nominal tightening torque of 0.7 Nm (within a ±20% tolerance and a 0.85 Nm maximum tightening torque), can be mounted in any position, and is supplied in a pack size of four. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8240790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8240790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 41.8 mm
- Length
- 19 mm
- Mounting position
- Any
- Pack size
- 4
- Valve manifold design
- Modular and expandable
- Valve position ID
- Label holder
- Compatible with
- Valve manifold VTUX-A-S
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Max. tightening torque
- 0.85 Nm
- Nominal tightening torque
- 0.7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 20 g
- Type of mounting
- Screwed
- Note on materials
- RoHS compliant
- Cover material
- PA-reinforced
- Seals material
- NBR
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8240790. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
