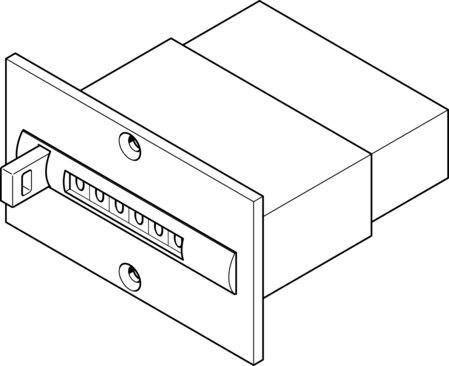

Reference imageConfirm configuration by manufacturer part number.
Festo
8606
Pneumatic counter PZA-E-C
The Festo 8606 is a 70 g mechanical sequence counter featuring a pneumatic actuator and a 6-digit display designed for front panel mounting. This component operates on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 2 bar to 8 bar, supporting lubricated operation and featuring ATEX certification for Zones 1, 2, 21, and 22. It requires an actuator response pressure greater than 0.8 bar with a drop-off pressure under 0.15 bar, alongside a minimum actuator pulse length of 8 ms and a minimum pause period of 10 ms. Resetting is accomplished via manual key or pneumatic signal, requiring a minimum resetting pressure of 2 bar and a cutout pressure under 0.15 bar, with a response pressure resetting of 2 bar, a minimum pulse length of 150 ms, and a minimum pause period of 50 ms within an ambient temperature range of 0 °C to 60 °C and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8606
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8606.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Mechanical sequence counter with pneumatic actuator
- Reset method
- Manual key or pneumatic signal
- Display
- 6 digit
- Actuator drop-off pressure
- <0.15 bar
- Resetting cutout pressure
- <0.15 bar
- Actuator response pressure
- > 0.8 bar
- Response pressure resetting
- 2 bar
- Operating pressure
- 2 bar...8 bar
- Minimum resetting pressure
- 2 bar
- Min. pulse length for actuator
- 8 ms
- Min. pulse length for reset
- 150 ms
- Minimum pause period for actuator
- 10 ms
- Minimum pause period for reset
- 50 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 70 g
- Type of mounting
- Front panel mounting
- Pneumatic connection
- M5
- Housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8606. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
