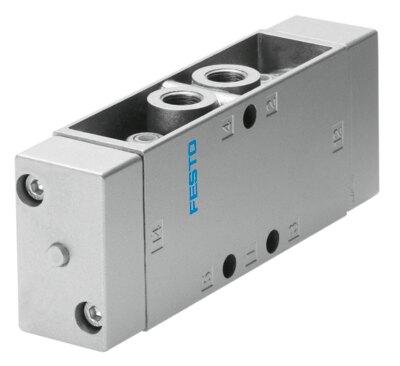

Reference imageConfirm configuration by manufacturer part number.
Festo
8824
Pneumatic valve JDH-5-1/8
The Festo 8824 is a 5/2-way, dominant, bistable pneumatic industrial component featuring a direct control type and an external pilot air supply port. This plate seat valve has a 26 mm width, a nominal width of 5 mm, a 600 l/min normal nominal flow rate, and G1/8 pneumatic working ports with soft sealing and an adjustable exhaust air function. Operating between 0 bar and 10 bar with a pilot pressure of 2.3 bar to 10 bar, the unit achieves a maximum switching frequency of 12 Hz and a 16 ms switch-off time across any mounting position with a negative overlap lap and non-reversible flow direction. Submit the exact part number, quantity, and application requirements for a formal quote on this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Pneumatic
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.23 MPa...1 MPa
- Pilot pressure
- 2.3 bar...10 bar
- Max. switching frequency
- 12 Hz
- Switching time off
- 16 ms
- On switching time
- 9 ms
- Changeover time
- 7 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 330 g
- Type of mounting
- Alternatively:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8824. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
