Festo
8983

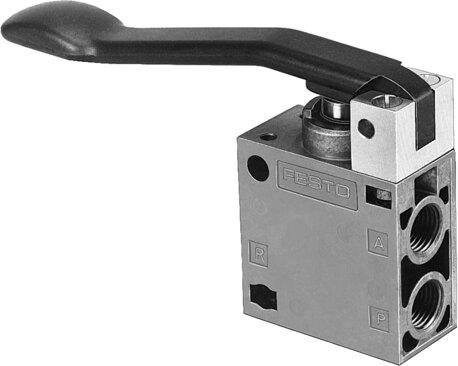

Finger lever valve TH-3-1/4-B
The Festo 8983 is a directly controlled 3/2-way closed monostable industrial component featuring a plate seat structural design and a nominal width of 7 mm. Constructed with a die-cast aluminum housing and NBR seals, it delivers a normal nominal flow rate of 600 l/min at operating pressures ranging from -0.95 bar to 10 bar through G1/4 pneumatic working ports. This unit incorporates ATEX certification for hazardous Zones 1, 2, 21, and 22, VDMA24364-B1/B2-L LABS conformity, an ambient temperature range of -10 °C to 60 °C, an actuating force of 10.5 N, a product weight of 210 g, and through-hole mounting provisions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8983
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8983.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar...10 bar
- Structural design
- Plate seat
- Nominal width
- 7 mm
- Type of control
- directly
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 10.5 N
- Product weight
- 210 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8983. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
