Festo
8987

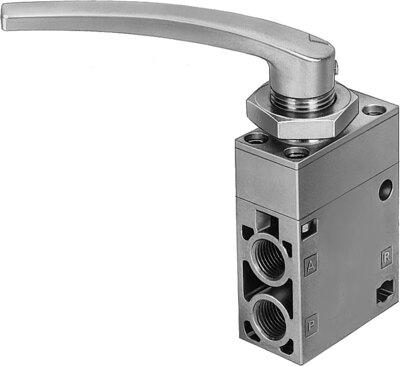

Hand lever valve H-3-1/4-B
The Festo part number 8987 is a 3/2-way bistable industrial component featuring a plate seat structural design and direct control actuation requiring an actuating torque of 0.5 Nm. This die-cast aluminum unit delivers a normal nominal flow rate of 600 l/min through G1/4 pneumatic working ports and G1/4 connections 1, 2, and 3, operating across a pressure range of -0.95 bar to 10 bar. Equipped with NBR seals, the 320 g device includes through-hole mounting, conforms to VDMA24364-B1/B2-L LABS standards, and functions within an ambient temperature range of -10 °C to 60 °C with a nominal width of 7 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8987
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8987.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar...10 bar
- Structural design
- Plate seat
- Nominal width
- 7 mm
- Type of control
- directly
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating torque
- 0.5 Nm
- Product weight
- 320 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
