Name: Festo 8988 Foot valve FO-3-1/4-B
Brand: Festo

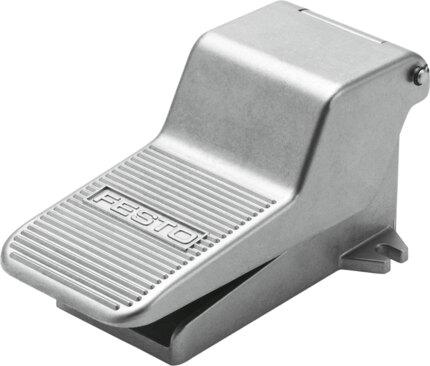

Foot valve FO-3-1/4-B

The Festo part number 8988 is a directly controlled, 3/2-way monostable open industrial component utilizing a plate seat structural design with a mechanical spring reset. Featuring a normal nominal flow rate of 600 l/min, a nominal width of 7 mm, and G1/4 pneumatic working ports, this manual actuator operates within a pressure range of -0.95 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. The unit weighs 595 g, requires a 55 N actuating force, offers any mounting position via through-hole installation, and complies with VDMA24364-B1/B2-L LABS conformity across ambient temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8988
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8988.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Manual
Normal nominal ow rate (normalized to DIN 1343): 600 l/min
Pneumatic working port: G1/4
Operating pressure: -0.95 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring
Nominal width: 7 mm
Mounting position: Any
Type of control: directly
Flow direction: Non-reversible
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Actuating force: 55 N
Product weight: 595 g
Type of mounting: With through-hole
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Seals material: NBR
Housing material: Die-cast aluminum
