Festo
8990

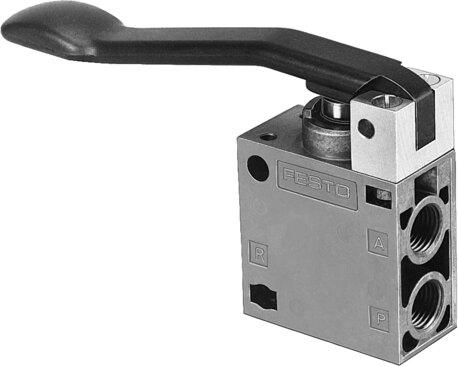

Finger lever valve THO-3-1/4-B
Engineered by Festo, the part number 8990 is a directly controlled 3/2-way monostable open industrial component featuring a plate seat structural design with a 7 mm nominal width and G1/4 pneumatic working ports for connections 1, 2, and 3. Constructed with a die-cast aluminum housing and NBR seals, this valve supports an operating pressure range of -0.95 bar to 10 bar, a normal nominal flow rate of 600 l/min normalized to DIN 1343, and VDMA24364-B1/B2-L LABS conformity. The unit weighs 210 g, operates within an ambient temperature range of -10 °C to 60 °C, requires an actuating force of 22.5 N, and mounts via a through-hole. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8990
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8990.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar...10 bar
- Structural design
- Plate seat
- Nominal width
- 7 mm
- Type of control
- directly
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 22.5 N
- Product weight
- 210 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
