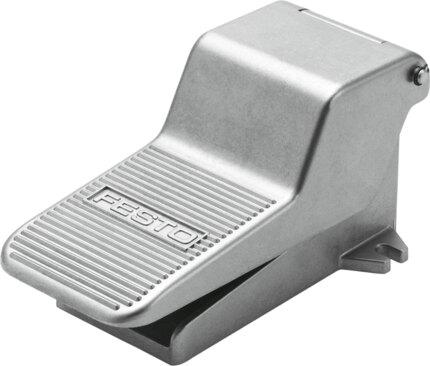

Name: Festo 8992 Foot valve F-5-1/4-B
Brand: Festo

Foot valve F-5-1/4-B

The Festo part number 8992 is a direct-controlled industrial component featuring a 5/2-way monostable valve function with manual actuation and a mechanical spring reset method. Designed with a plate seat structural design and a G1/4 pneumatic working port across connections 1, 2, and 3, this unit delivers a normal nominal flow rate of 550 l/min at a nominal width of 7 mm. It operates within a pressure range of -0.95 bar to 10 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4], supporting an ambient temperature of -10 °C to 60 °C and an actuating force of 78 N. Weighing 705 g with VDMA24364-B1/B2-L LABS conformity, the assembly mounts in any position using a through-hole type of mounting. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8992
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8992.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Manual
Normal nominal ow rate (normalized to DIN 1343): 550 l/min
Pneumatic working port: G1/4
Operating pressure: -0.95 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring
Nominal width: 7 mm
Mounting position: Any
Type of control: directly
Flow direction: Non-reversible
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Actuating force: 78 N
Product weight: 705 g
Type of mounting: With through-hole
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Pneumatic connection 5: G1/4
Seals material: NBR
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8992. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
