Festo
8994

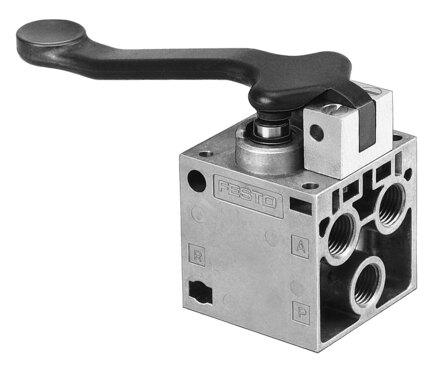

Finger lever valve TH-5-1/4-B
The Festo part number 8994 is a directly controlled 5/2-way monostable industrial component featuring a plate seat structural design and a nominal width of 7 mm. Built with a die-cast aluminum housing, NBR seals, and G1/4 pneumatic working ports, this valve provides a normalized nominal flow rate of 550 l/min across an operating pressure range of -0.95 bar to 10 bar. It supports an actuating force of 34 N, mounts via through-holes, operates in ambient temperatures between -10 °C and 60 °C, carries VDMA24364-B1/B2-L LABS conformity, and includes ATEX explosion prevention and protection for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8994
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8994.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar...10 bar
- Structural design
- Plate seat
- Nominal width
- 7 mm
- Type of control
- directly
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 34 N
- Product weight
- 320 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
