Festo
8997

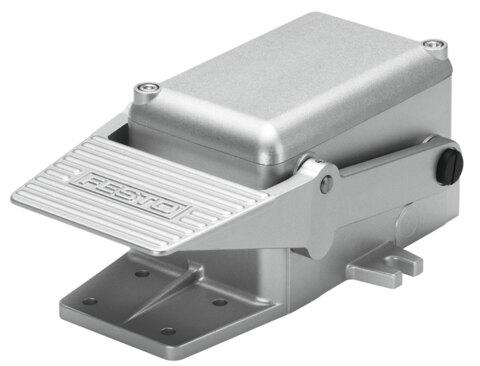

Foot valve with detent FP-5-1/4-B
The Festo part number 8997 is a direct-controlled 5/2-way bistable manual industrial component featuring a plate seat structural design and G1/4 pneumatic working ports. Operating within a pressure range of -0.95 bar to 10 bar, this non-reversible unit delivers a normal nominal flow rate of 550 l/min utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. It requires an actuating force of 82 N, includes a mechanical spring reset method, weighs 1845 g, and supports mounting in any position using through-holes at an ambient temperature of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Manual
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 7 mm
- Mounting position
- Any
- Type of control
- directly
- Flow direction
- Non-reversible
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 82 N
- Product weight
- 1845 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
