Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

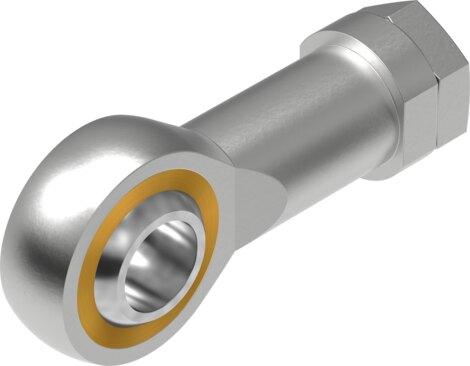

Reference imageConfirm configuration by manufacturer part number.
Festo
9264
Rod eye SGS-M20X1,5
The Festo part number 9264 is an industrial component featuring an M20x1.5 size based on the ISO 12240-4 norm and a maximum load capacity of 9 kN. Constructed with a brass outer ring, a steel inner raceway, and galvanized steel for the housing and nut, this 468 g assembly operates within an ambient temperature range of -40 °C to 150 °C. It maintains a corrosion resistance class of CRC 1 with low corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9264
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9264.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M20x1.5
- Based on norm
- ISO 12240-4
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 9 kN
- Product weight
- 468 g
- Note on materials
- RoHS compliant
- Material of outer ring
- Brass
- Housing material
- Steel, galvanized
- Inner raceway material
- Steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9264. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
