Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

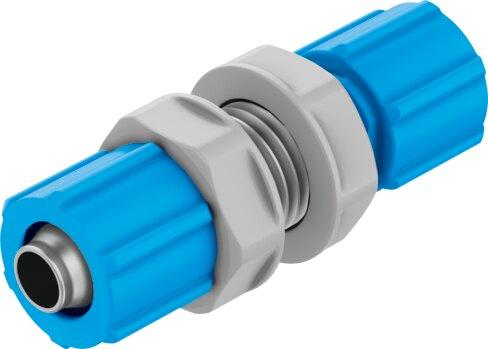

Reference imageConfirm configuration by manufacturer part number.
Festo
9389
Bulkhead quick connector SCK-PK-6-KU
The Festo part number 9389 is an industrial component featuring a bulkhead design with a 5.3 mm nominal width and an any mounting position. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, or -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C, supporting lubricated operation and RoHS compliant POM construction for both the connector, nuts, and union nuts. Pneumatic connection 1 and connection 2 both accommodate 8 mm outside diameter pneumatic tubing or 6 mm inside diameter barbed fittings with union nuts and nuts. Submit the exact part number, quantity, and application requirements for a quote on this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9389
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9389.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 5.3 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
- Material of union nut
- POM
- Note on materials
- RoHS compliant
- Nut material
- POM
- Connector material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9389. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
