9390

Name: Festo 9390 Bulkhead quick connector SCK-PK-9-KU
Brand: Festo

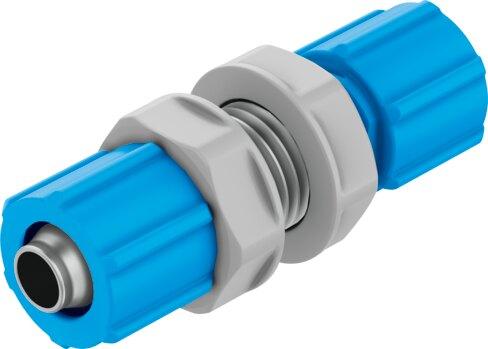

Bulkhead quick connector SCK-PK-9-KU

The Festo 9390 is a bulkhead industrial component featuring an 8 mm nominal width and POM connector, union nut, and nut materials, allowing for any mounting position. It operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C with compressed air as per ISO 8573-1:2010 [7:-:-], while accommodating lubricated operation and adhering to VDMA24364-B1/B2-L LABS conformity and RoHS compliance. Pneumatic connection 1 and pneumatic connection 2 both utilize barbed fittings for a 9 mm inside diameter with a union nut and nut, respectively. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 9390
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 9390.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 8 mm
Mounting position: Any
Design: Bulkhead
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: For barbed tting, inside diameter 9 mm, with union nut
Pneumatic connection 2: for barbed tting, inside diameter 9 mm, with nut
Material of union nut: POM
Note on materials: RoHS compliant
Nut material: POM
Connector material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 9390. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
