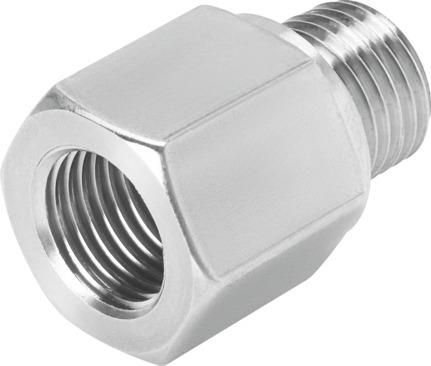

Reference imageConfirm configuration by manufacturer part number.
Festo
9395
Adapter AD-G1/8-1/8NPT-I
This Festo industrial component, part number 9395, features a nominal width of 5.95 mm, a galvanized steel housing, and PVC seals. Operating pressure spans from -0.95 bar to 10 bar across an ambient temperature range of -10 °C to 60 °C, while connection specifications include an external thread G1/8 and an internal thread 1/8 NPT. The RoHS compliant part weighs 10.38 g, offers a corrosion resistance class of CRC 1, and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9395
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9395.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 5.95 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 6 Nm
- Max. tightening torque, pneumatic connection 2
- 7 Nm
- Nominal tightening torque
- 10.55 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 10.38 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- Internal thread 1/8 NPT
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9395. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
