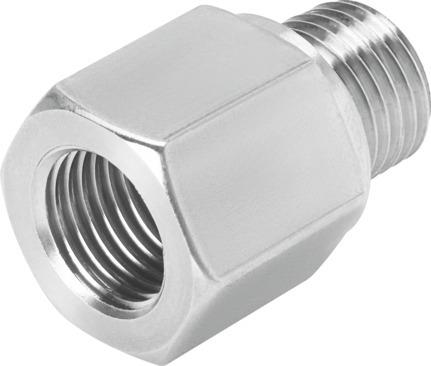

Reference imageConfirm configuration by manufacturer part number.
Festo
9396
Adapter AD-G1/4-1/4NPT-I
The Festo part number 9396 is a 24.22 g industrial component featuring a nominal width of 7.95 mm, an operating pressure range of -0.95 bar to 10 bar, and a CRC rating of 1 for low corrosion stress. Constructed with a galvanized steel housing and PVC seals, it includes an external thread G1/4 pneumatic connection 1 with a maximum tightening torque of 11 Nm, and an internal thread 1/4 NPT pneumatic connection 2 with a maximum tightening torque of 12 Nm. This RoHS compliant unit operates in ambient temperatures from -10 °C to 60 °C, aligns with VDMA24364-B1/B2-L LABS conformity, and incorporates a nominal tightening torque of 9.05 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9396
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9396.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.95 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 11 Nm
- Max. tightening torque, pneumatic connection 2
- 12 Nm
- Nominal tightening torque
- 9.05 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 24.22 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- Internal thread 1/4 NPT
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9396. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
