Festo
9397

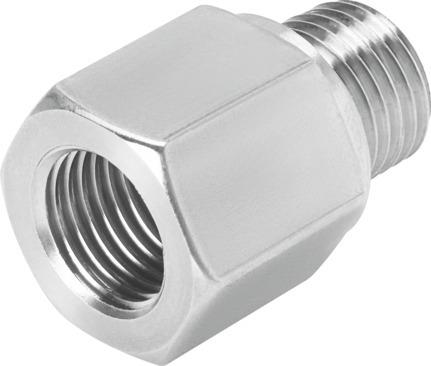

Adapter AD-G3/8-3/8NPT-I
The Festo part number 9397 is an industrial component featuring an 11.5 mm nominal width, an operating pressure range of -0.95 bar to 10 bar, and a product weight of 25.3 g. Constructed with a galvanized steel housing and PVC seals, this RoHS-compliant unit includes an external G3/8 pneumatic connection 1 with a maximum tightening torque of 25 Nm and an internal 3/8 NPT pneumatic connection 2 with a maximum tightening torque of 22 Nm, alongside a nominal tightening torque of 38.5 Nm at a tolerance of ±20%. Designed for an ambient temperature range of -10 °C to 60 °C, it possesses a low corrosion resistance class (CRC) of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9397
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9397.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11.5 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 25 Nm
- Max. tightening torque, pneumatic connection 2
- 22 Nm
- Nominal tightening torque
- 38.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 25.3 g
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- Internal thread 3/8 NPT
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
