Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

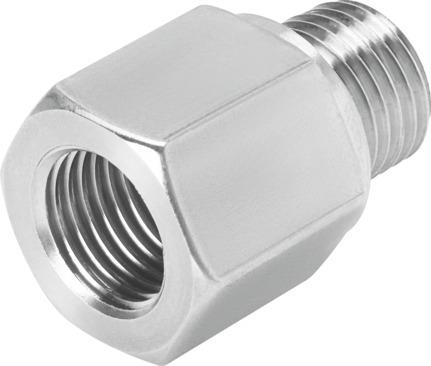

Reference imageConfirm configuration by manufacturer part number.
Festo
9398
Adapter AD-G1/2-1/2NPT-I
The Festo part number 9398 is an industrial component featuring a nominal width of 14.3 mm and an operating pressure range of -0.95 bar to 10 bar across its entire temperature span. Constructed with a galvanized steel housing and PVC seals, this RoHS compliant unit includes an external thread G1/2 pneumatic connection 1 and an internal thread 1/2 NPT pneumatic connection 2. It weighs 51.89 g, exhibits a corrosion resistance class of CRC 1, adheres to VDMA24364-B1/B2-L LABS conformity, and operates within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9398
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9398.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 14.3 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 40 Nm
- Max. tightening torque, pneumatic connection 2
- 28 Nm
- Nominal tightening torque
- 47.9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 51.89 g
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- Internal thread 1/2 NPT
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9398. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
