Festo
9420

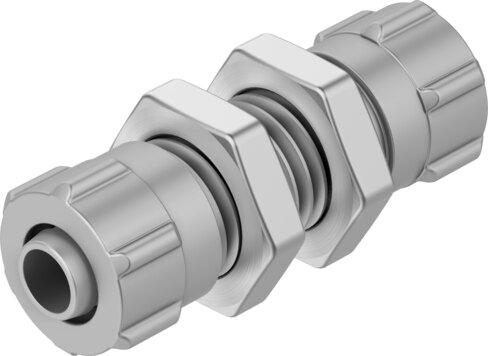

Bulkhead quick connector SCK-PK-3
The Festo 9420 is a bulkhead industrial component featuring a nominal width of 2.4 mm and an any mounting position, supplied in a pack size of 10. Constructed with an anodized wrought aluminum alloy connector and union nut alongside a galvanized steel nut, this RoHS compliant part operates up to 1.6 MPa (16 bar, 232 psi) across an ambient temperature range of -40 °C to 150 °C using compressed air per ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Pneumatic connection 1 utilizes a barbed fitting for 3 mm inside diameter tubing with a union nut alongside an outside diameter of 4 mm, matching pneumatic connection 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9420
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9420.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Operating pressure for entire temperature range
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...150 °C
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Nut material
- Steel, galvanized
- Connector material
- Wrought aluminum alloy, anodized
