Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

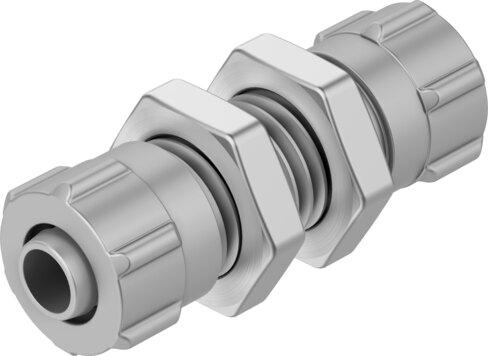

Reference imageConfirm configuration by manufacturer part number.
Festo
9421
Bulkhead quick connector SCK-PK-4
This Festo industrial component, part number 9421, is a bulkhead design featuring a 3.4 mm nominal width and any mounting position, supplied in a pack size of 10. It operates across an ambient and operating temperature range of -40 °C to 150 °C at pressures from 0 MPa to 1.6 MPa (0 bar to 16 bar, 0 psi to 232 psi) using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. The unit incorporates an anodized wrought aluminum alloy connector and union nut alongside a galvanized steel nut, offering a corrosion resistance class (CRC) of 1 and VDMA24364-B1/B2-L LABS conformity while complying with RoHS standards. Pneumatic connection 1 accommodates 6 mm outside diameter pneumatic tubing or a 4 mm inside diameter barbed fitting with a union nut, and pneumatic connection 2 accommodates 6 mm outside diameter pneumatic tubing or a 4 mm inside diameter barbed fitting with a nut. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9421
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9421.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3.4 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Operating pressure for entire temperature range
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...150 °C
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Nut material
- Steel, galvanized
- Connector material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9421. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
