Festo
9422

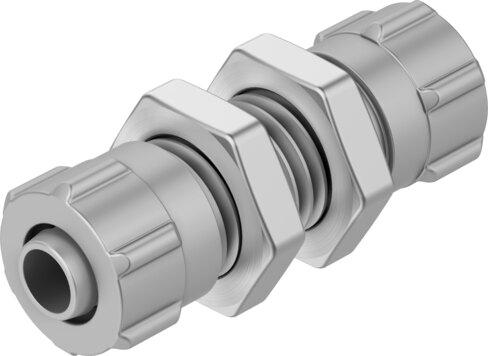

Bulkhead quick connector SCK-PK-6
The Festo part number 9422 is a bulkhead industrial component featuring a nominal width of 5.3 mm and an ambient temperature range of -40 °C to 150 °C, suitable for any mounting position. Constructed with an anodized wrought aluminum alloy connector and union nut alongside a galvanized steel nut, this RoHS-compliant assembly operates up to 1.6 MPa (16 bar, 232 psi) using compressed air conforming to ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Pneumatic connection 1 and pneumatic connection 2 accommodate 8 mm outside diameter pneumatic tubing or 6 mm inside diameter barbed fittings with union nuts, backed by a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity. This pack size of 10 is available for procurement by submitting the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9422
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9422.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 5.3 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Operating pressure for entire temperature range
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...150 °C
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Nut material
- Steel, galvanized
- Connector material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9422. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
