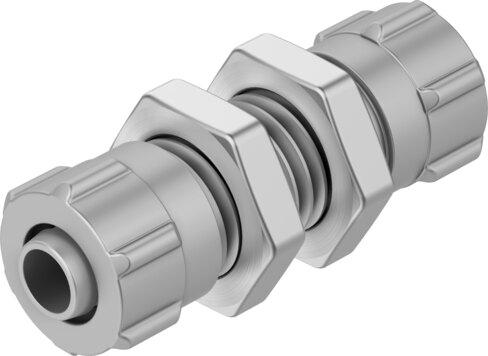

Reference imageConfirm configuration by manufacturer part number.
Festo
9423
Bulkhead quick connector SCK-PK-9
The Festo 9423 is an industrial component featuring a bulkhead design with an 8 mm nominal width and any mounting position. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 MPa to 1.6 MPa (0 bar to 16 bar, 0 psi to 232 psi) and an ambient temperature range of -40 °C to 150 °C, supporting lubricated operation. Constructed with a wrought aluminum alloy anodized connector and union nut, a galvanized steel nut, and offering RoHS compliance, it includes pneumatic connection 1 and pneumatic connection 2 for barbed fittings with a 9 mm inside diameter using union nuts and nuts respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9423
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9423.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Mounting position
- Any
- Design
- Bulkhead
- Operating pressure for entire temperature range
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...150 °C
- Pneumatic connection 1
- For barbed tting, inside diameter 9 mm, with union nut
- Pneumatic connection 2
- for barbed tting, inside diameter 9 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Nut material
- Steel, galvanized
- Connector material
- Wrought aluminum alloy, anodized
