Festo
9424

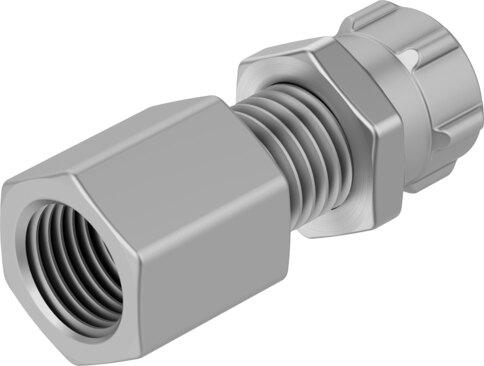

Bulkhead quick connector QCK-M5-PK-3-B
The Festo part number 9424 is an industrial component featuring a 2.4 mm nominal width, a bulkhead design, and a sealing ring type of seal on the screwed plug with any mounting position. It operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. Constructed with an anodized wrought aluminum alloy union nut and connector, a galvanized steel nut, and RoHS-compliant materials, the unit includes an M5 internal thread pneumatic connection 1 and a pneumatic connection 2 for 4 mm outside diameter tubing or 3 mm inside diameter barbed fitting with a nut, requiring a nominal tightening torque of 1.33 Nm with a ±20% tolerance, a CRC rating of 1, and VDMA24364-B1/B2-L LABS conformity in a pack size of 10. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- Internal thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Nut material
- Steel, galvanized
- Connector material
- Wrought aluminum alloy, anodized
