9427

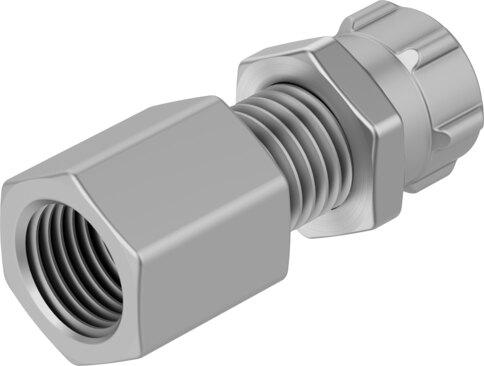

Name: Festo 9427 Bulkhead quick connector QCK-3/8-PK-9-B
Brand: Festo

Bulkhead quick connector QCK-3/8-PK-9-B

The Festo part number 9427 is a bulkhead industrial component featuring an 8 mm nominal width, an internal thread G3/8 pneumatic connection 1, and a pneumatic connection 2 for a 9 mm inside diameter barbed fitting with a nut. Constructed with an anodized wrought aluminum alloy connector and union nut, alongside a galvanized steel nut, this component operates within a pressure range of -0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. It utilizes a sealing ring on the screwed plug, has a nominal tightening torque of 12.5 Nm with a ±20% tolerance, and achieves a CRC rating of 1 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 9427
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 9427.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 8 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Bulkhead
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Nominal tightening torque: 12.5 Nm
Tolerance for nominal tightening torque: ±20%
Pneumatic connection 1: Internal thread G3/8
Pneumatic connection 2: for barbed tting, inside diameter 9 mm, with nut
Material of union nut: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Nut material: Steel, galvanized
Connector material: Wrought aluminum alloy, anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 9427. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
