Festo
9492

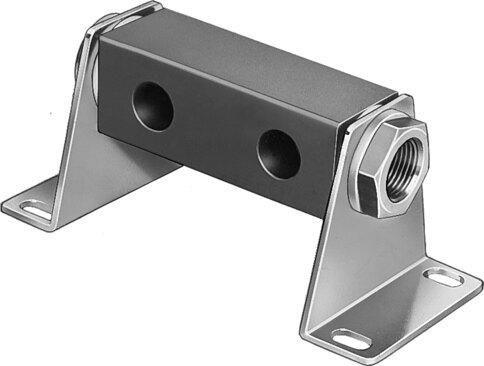

Common supply manifold PAL-1/2-2
The Festo part number 9492 is an industrial component featuring an anodized aluminum sub-base with a product weight of 770 g and RoHS-compliant materials. This unit accommodates a maximum of two valve positions, allows for any mounting position, and utilizes G3/4 pneumatic connection 1 with VDMA24364-B1/B2-L LABS conformity. Installation is completed via a retaining bracket. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9492
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9492.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Max. no. of valve positions
- 2
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 770 g
- Type of mounting
- With retaining bracket
- Pneumatic connection 1
- G3/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9492. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
