Festo
9495

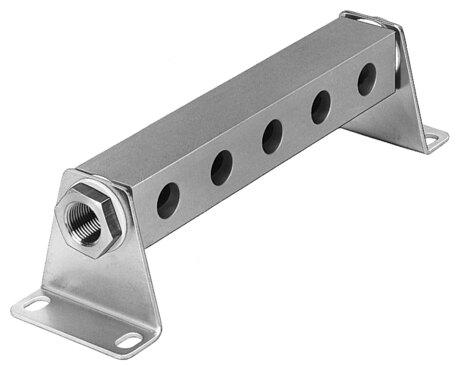

Common supply manifold PAL-1/2-5
The Festo part number 9495 is an industrial component featuring an anodized aluminum sub-base with a product weight of 1220 g and RoHS compliant materials. This anodized aluminum sub-base accommodates a maximum of 5 valve positions, includes a G3/4 pneumatic connection 1, and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Mounting is achieved using a retaining bracket in any desired mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9495
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9495.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Max. no. of valve positions
- 5
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1220 g
- Type of mounting
- With retaining bracket
- Pneumatic connection 1
- G3/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9495. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
