Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

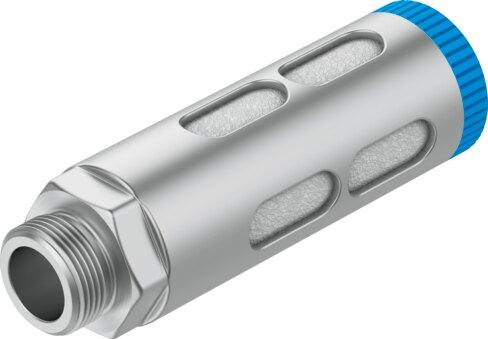

Reference imageConfirm configuration by manufacturer part number.
Festo
9517
Flow control/muffler GRU-1/4-B
The Festo part number 9517 is a sound pressure flow control valve featuring an integrated muffler, G1/4 pneumatic connection, and a slotted screw adjusting element for screw-in mounting. Constructed with an aluminum housing, die-cast aluminum screwed plug, PA adjusting screw, and protective grounding cushioning insert material, this component delivers a standard flow rate ranging from 0 l/min to 1500 l/min at 6 to 0 bar. It operates within a temperature range of -10 °C to 70 °C, supports an operating pressure of 0 bar to 10 bar with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and complies with VDMA24364-B1/B2-L LABS conformity and RoHS material standards while weighing 25 g with any mounting position. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9517
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9517.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Sound pressure ow control function
- Selection of additional function
- with muffler
- Pneumatic connection 1
- G1/4
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard ow rate 6->0 bar
- 0 l/min...1500 l/min
- Ambient temperature
- -10 °C...70 °C
- Housing material
- Aluminum
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...70 °C
- Product weight
- 25 g
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Die-cast aluminum
- Note on materials
- RoHS compliant
- Material of adjusting screw
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9517. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
