Festo
9519

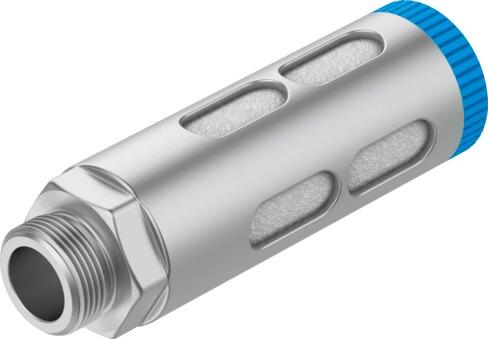

Flow control/muffler GRU-1/2-B
The Festo part number 9519 is an industrial component featuring a sound pressure flow control function with a muffler and a G1/2 pneumatic connection. Constructed with an aluminum housing, a die-cast aluminum screwed plug, and a PA adjusting screw, this screw-in valve operates within a temperature and pressure range of -10 °C to 70 °C and 0 bar to 10 bar, respectively. It supports compressed air as an operating medium per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and achieves a standard flow rate from 0 l/min to 4000 l/min at 6 to 0 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9519
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9519.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Sound pressure ow control function
- Selection of additional function
- with muffler
- Pneumatic connection 1
- G1/2
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard ow rate 6->0 bar
- 0 l/min...4000 l/min
- Ambient temperature
- -10 °C...70 °C
- Housing material
- Aluminum
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...70 °C
- Product weight
- 100 g
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Die-cast aluminum
- Note on materials
- RoHS compliant
- Material of adjusting screw
- PA
