Festo
9581

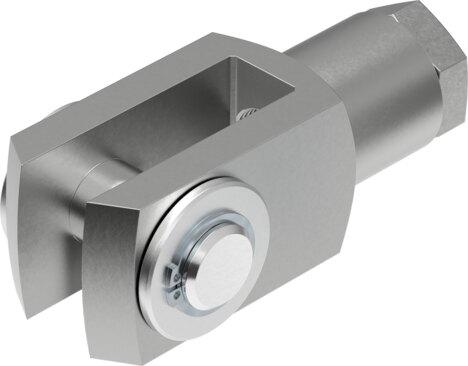

Rod clevis SG-M36X2
The Festo 9581 is an industrial component featuring an internal threaded connection of M36x2 and conforms to ISO 8140 standards. Constructed from galvanized steel for the bolt, clevis, and nut, this 4320 g unit provides CRC 1 corrosion resistance, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 150 °C with RoHS compliance. Metals exceeding 1% mass of copper and specified electrical components are excluded to maintain suitability for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9581
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9581.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M36x2
- Conforms to standard
- ISO 8140
- Threaded connection
- Internal thread M36x2
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 4320 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
